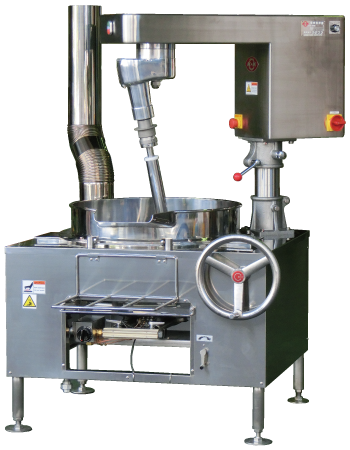

Mixing Cooker KRS
Front tilting type

Gas

Front tilting leads to improve productivity and operating accuracy.

Kettle capacity

40～110L

FEATURES

01 Kajiwara’s unique structure

●Unique inclined-shaft mixer with planetary and self revolution for mixing gives very effective mixing and even in case of low speed, good taste of product is attained without scorching and/or unevenness.
●Oblique axis mixing has no dead point in the pan. Scraping blades work very well at slow speed mixing and enables very efficient stirring without burnt.

02 Mixing speed is free from low to high

●Adjust the right speed for your products. It is changeable anytime in the process.

03 Mixing head is made of stainless steel

●Simple design and application of stainless steel (SUS304) increase the durability in heating and easy cleaning.

04 Gas heating is the best for cooking that needs high temperature

●With the gas heating, high temperature cooking is possible. Boiler equipment is not required.

USES

Various type of bean jam, Jelly, Jam, Marmalade, Custard cream, Fondant, Filling, Fried vegetable / meat, Stew, Roux, Cream croquette, Peanut cream, Sauce, Soup, etc.

MOVIES

Mixing Cooker KRS-3568 Extract Extraction

SPEC

Model		KRS-1713	KRS-1762	KRS-2765	KRS-2716	KRS-2766
Kettle capacity （L）		54	55	85	110
Power supply		3Phase 200V/380V/400V
Mixing motor （kW）		0.2		0.4
Gas consumption （kW）	LPG	17.4		23.3	29.1
Gas consumption （kW）	City gas	17.4		23.3	29.1
Material of kettle		Copper	Stainless		Copper	Stainless
Diameter of kettle （mm）		600	550	650	700
Dimensions （mm）	Width	1,085	965	1,205		1,230
	Depth	1,325	1,260	1,435	1,430	1,465
	Height	1,595	1,625			1,615

※Other dimensions are available on request. Other specifications than specified above are also available.
※Above specifications may be revised for the technical improvement without prior notice.
※This product is made in Japan.
