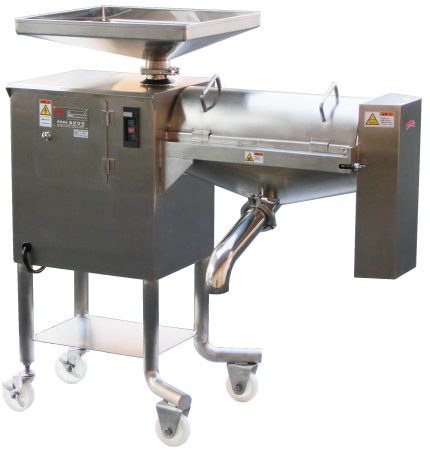

Sauce/Soup Finisher SF
Let sauce and soup be more mild taste.
Capacity
500〜2,000kg/H
FEATURES
01 Finishes the product at high level of quality
●Purees sauce and soup continuously.
●Purees raw material attentively at high quality.
02 Compact Design
●Freely rotatable caster allows it moved very easily. It will not take a huge amount of space.
03 Easy to Decompose and Clean Stainless steel exterior makes it hygienic
●Sanitary piping and stainless steel exterior makes it very hygienic as well as having excellent durability.
●Decomposing and cleaning are easily done due to the simple structure.
USES
Sauce, Soup, Tomato juice, Tomato puree, Gruel, Soup stock, Sesame paste, etc.
MOVIE
Sauce/Soup Finisher SF Pureed Vegetable Paste
SPEC
| Model | SF-1 | SF-2 | |
|---|---|---|---|
| Power supply | 3Phase 200V/380V/400V | ||
| Motor of pump （kW） | ー | 0.75 | |
| Motor of blade （kW） | 0.4 | 0.75 | |
| Screen（can be chosen for suitable size） | Wire mesh/Punched plate | Upper/Lower Wire mesh/Punched plate |
|
| Blade Material | Silicone | Upper/Lower Silicone | |
| Capacity （ton/H） | 0.5〜1 | 1〜2 | |
| Product outlet height （mm） | 510 | 615 | |
| Dregs outlet height （mm） | 500 | 670 | |
| Dimensions （mm） | Width | 1,160 | 1,310 |
| Depth | 655 | 700 | |
| Height | 1,140 | 1,670 | |
※Other dimensions are available on request. Other specifications than specified above are also available.
※Above specifications may be revised for the technical improvement without prior notice.
※This product is made in Japan.
